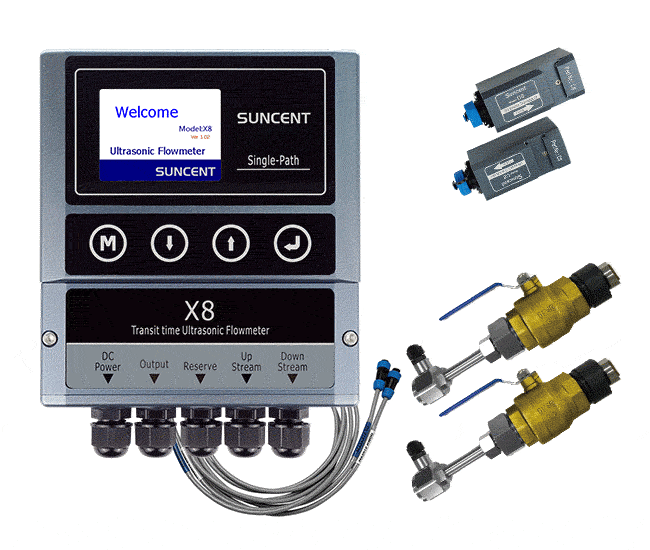

X8 is a high-precision ultrasonic flowmeter, which supports the large diameter of DN25~DN5000. External clamp and plug-in sensors can be selected, and different sensors have their own relative advantages:
The external clamp type does not contact with liquid, and can measure various liquids. It does not need to stop production during installation. It is supported in various pipelines such as carbon steel pipes, cast iron pipes and PVC pipes, and is suitable for measuring related scenes such as drugs, beverages and drinking water.
Insertion type measurement is relatively stable, and can also be installed online with pressure, without stopping production. It supports various special pipelines such as cement pipes and cast iron pipes, and is suitable for measuring water consumption in sewage plants, irrigation, industrial production processes and other related scenarios.
|
Advantages of products:
Stable measurement,the flow accuracy of 0.5% can bring high-quality data after successful installation.
Rich output, X8 has its own analog output: 4-20mA, pulse output: 0 ~ 999Hz, OCT, relay output: SPST, max 1Hz, Modbus output interface RS485, and can customize communication protocols such as BACnet and LoRa.
Friendly interface, 2.8-inch LCD color screen display, 4 touch buttons operation, the system is in menu mode, and all data can be selected and modified in the menu, which gets rid of the traditional code setting and is more convenient and simple to use.
Solid hardware, X8 mainframe shell adopts aluminum alloy CNC technology, which is not afraid of bumping, solid and reliable. The sensor adopts twisted-pair shielded cable, with a standard length of 10 meters and a maximum length of 200 meters.
|

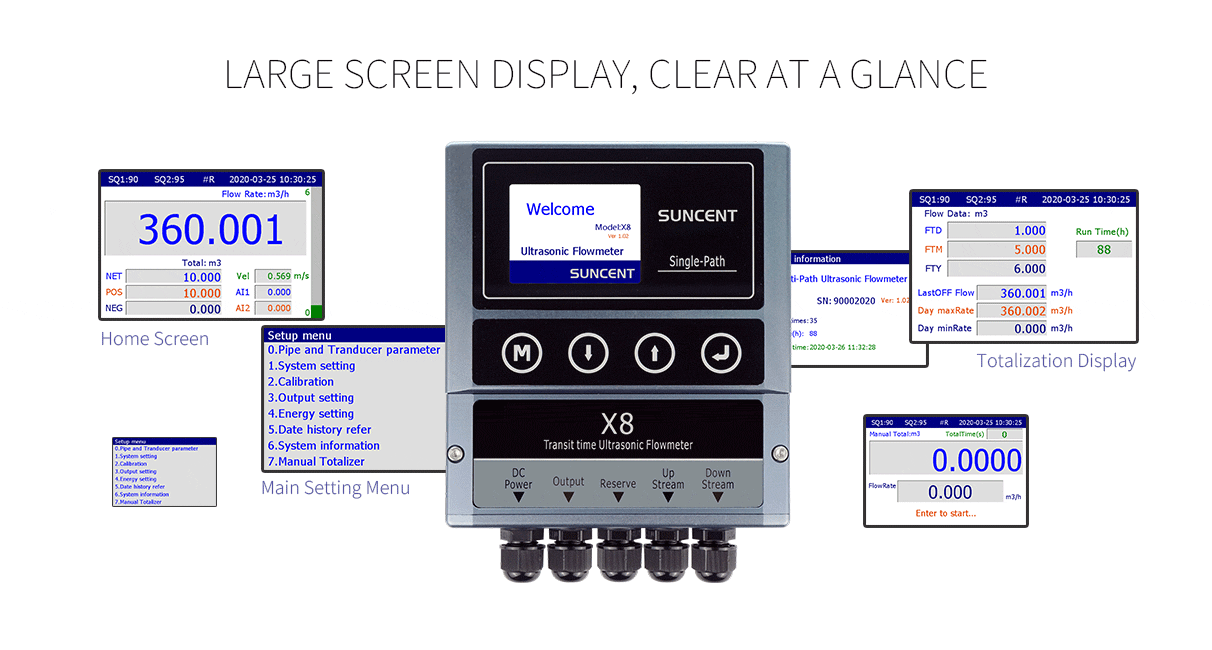

X8 rich display interface:

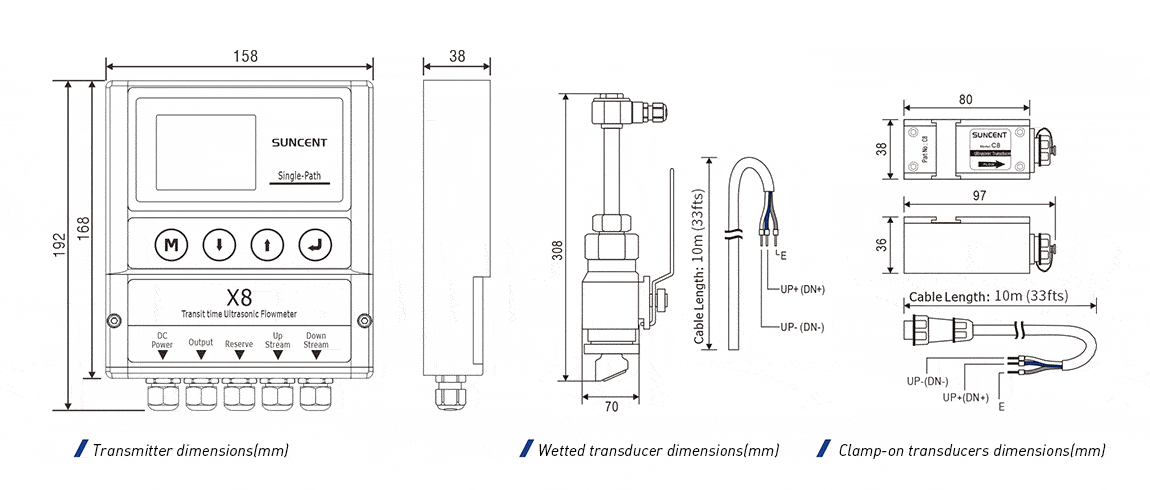

Specifications and dimensions of host sensor:

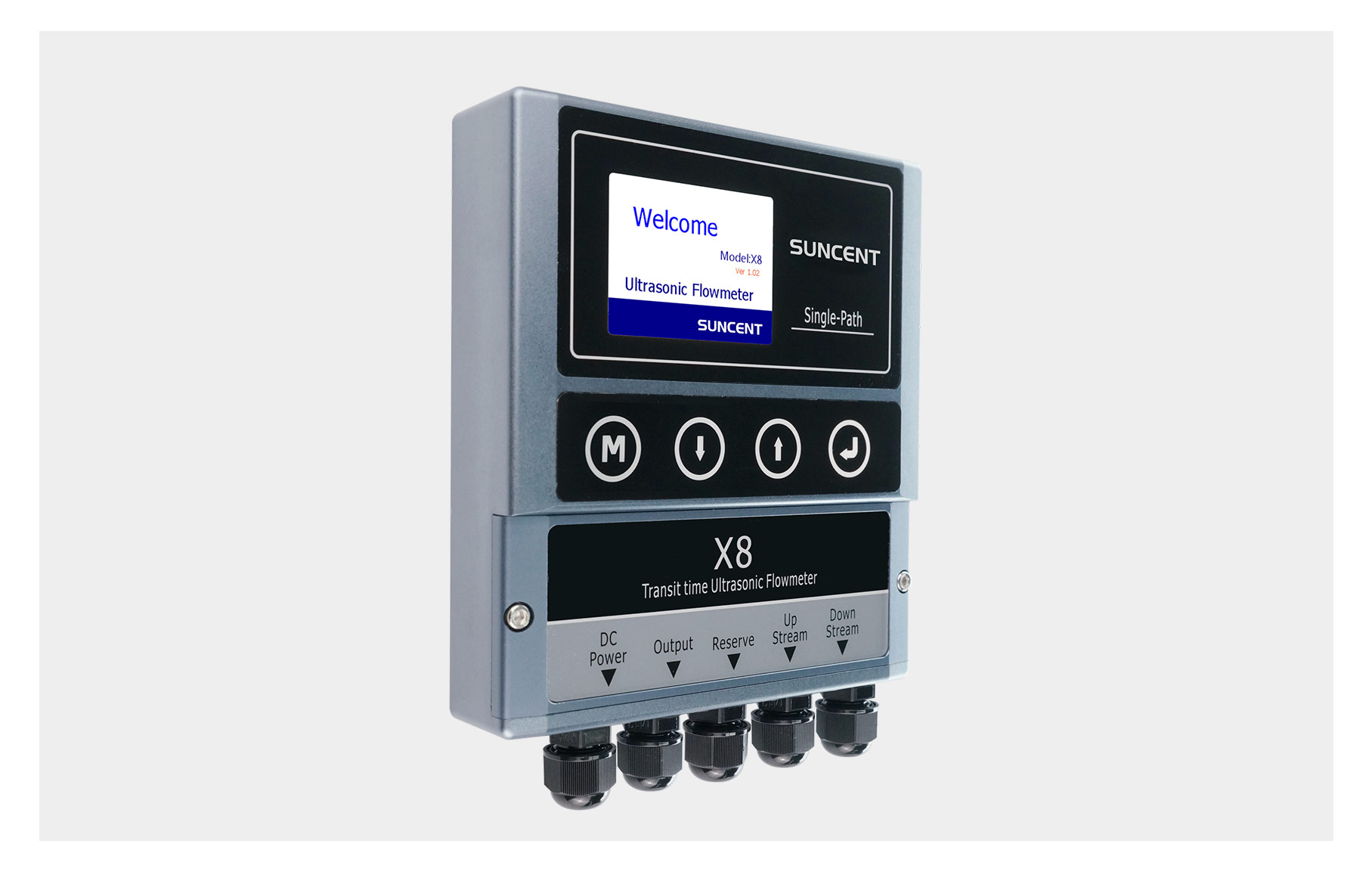

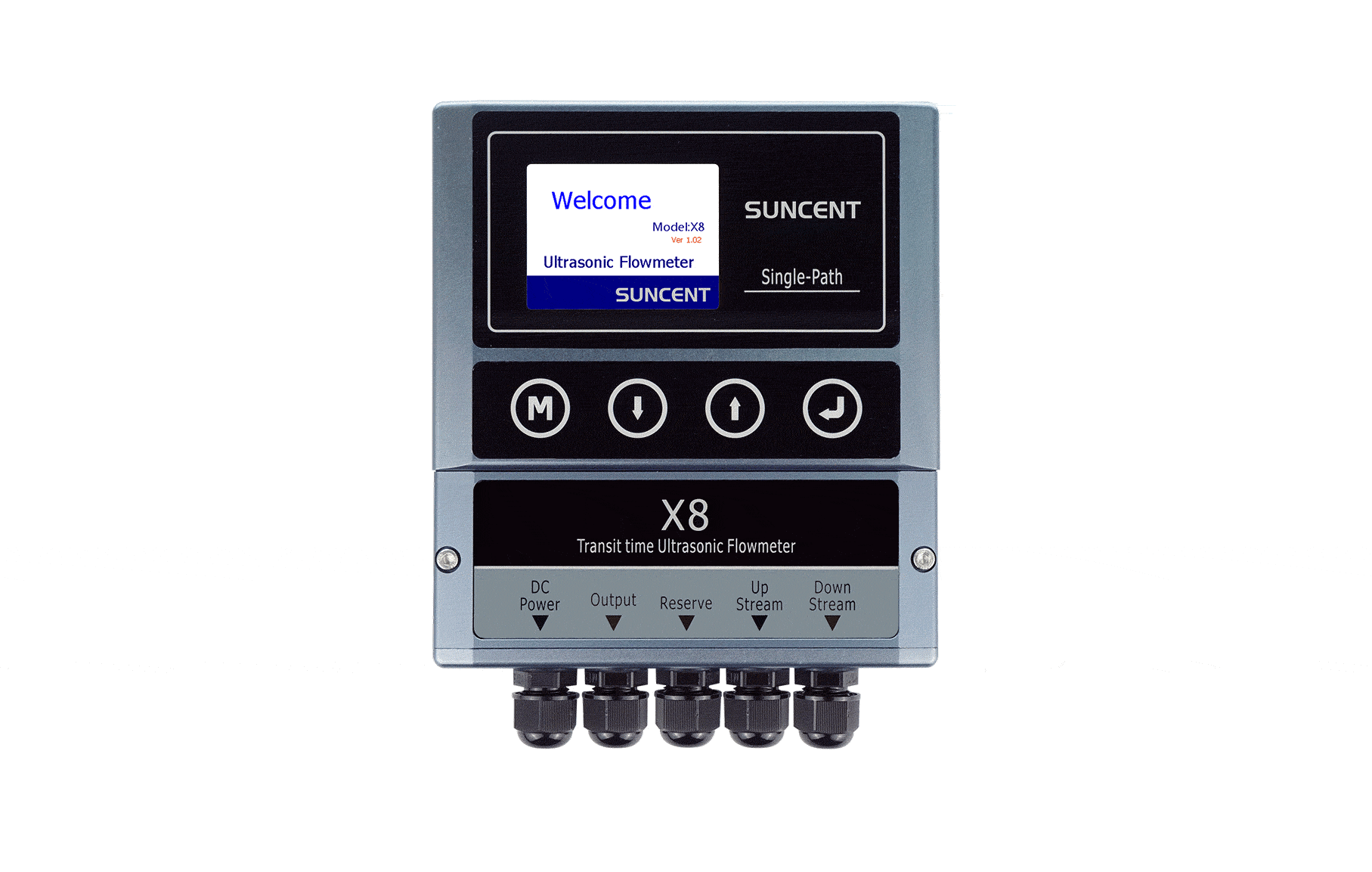

Product display:
Detailed product specifications:
|
Product Name
|
SUNCENT-X8 Clamp-on Type Ultrasonic Flowmeter
|
|
Product Model
|
X8
|
|
Flow range
|
0~±12.0m/s(0~±40ft/s)
|
|
Accuracy
|
±0.5%
|
|
Repeatability
|
0.1%
|
|
Linearity
|
0.5%
|
|
Pipe size
|
25mm ~ 5000mm(1" ~ 200")
|
|
Outputs
|
Analog output: 4~20mA (max load 750 )
Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)
Relay output: SPST, max 1Hz, (1A@125VAC or 2A@30VDC)
|
|
Communication
|
Rs485, Modbus, BACnet(optional)
|
|
Power supply
|
12V ~ 36V DC
|
|
Keypad
|
4 key with tactile action
|
|
Display
|
2.8 inch TFT LCD screen, 320x 240 pixel true color LCD screen
|
|
Temperature
|
Transmitter: -40°C ~ 60°C(-40° F~140° F)
Standard Transducer: -40°C ~ 80°C (-40° F~176° F)
Optional high temperature sensor
|
|
Humidity
|
UP to 95% RH, non-condensing
|
|
Suitable for pipes
|
Cement pipe, stainless steel, carbon steel, copper pipe, plastic pipe, etc
|
|
Transmitter
|
Aluminium alloy CNC
|
|
Transducer
|
Encapsulated design, double-shielded transducer cable.
Standard cable length: 10m (33ft)，the maximum length can be increased to 200 meters (every 5 meters is an extension unit)
|
|
Transmitter Weight
|
About 1.2kg
|
|
Transducer Weight
|
Outside clamp type (standard): about 1.3kg(2.9lb)/ pair
Insertion type (standard): about 4.7kg(10.4lb)/ pair
|
Download of product information:
X8 Clamp-on Type Ultrasonic Flowmeter English Edition Album(Click to view)
