X3 anti-corrosion split type has high-efficiency and stable measuring capability in measuring flow and production process, and supports pipes of various materials and sizes, such as PFA/PU hose, stainless steel pipe, carbon steel pipe, copper pipe and plastic pipe (PVC, PVDF, PPR, PPH, HDPE, etc.).
And X3 can also meet the measurement of different cleaning liquids, such as acid, chemical solvent, alcohol, beverage, water and other clean liquids.

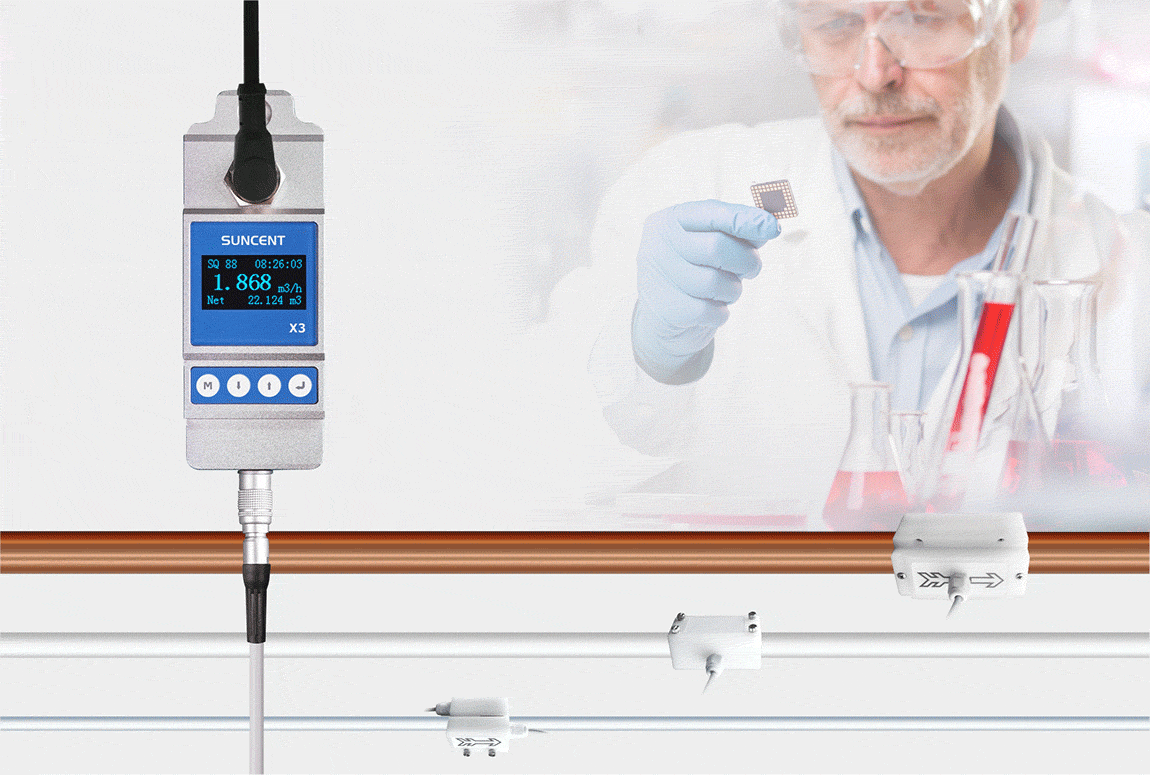

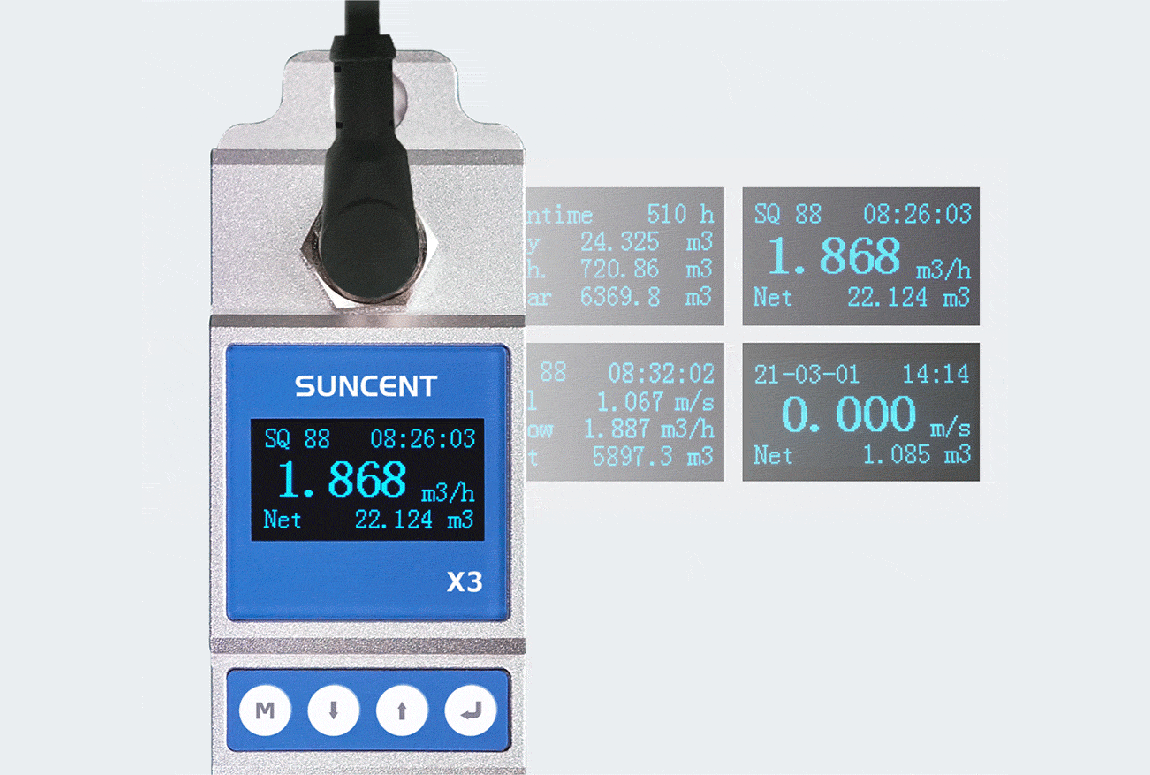

It can be installed deep in the equipment, and real-time data can be seen clearly with poor light. X3 also supports 4-20mA and RS-485 communication protocols for transmission, which can link data through Modbus, and can also customize communication protocols such as OCT, LoRa and BACnet.
Supporting piping:
|
Model
|
X3-Φ9.53
|
X3-Φ12.7
|
X3-Φ15
|
X3-Φ20
|
X3-Φ25
|
X3-Φ32
|
|
Pipe outer diameter
|
Φ9.53
|
Φ12.7
|
Φ15
|
Φ20
|
Φ25
|
Φ32
|
|
Pipe inner diameter
|
8mm
|
--
|
10mm
|
15mm
|
20mm
|
25mm
|
|
Nominal name
|
DN8
|
--
|
DN10
|
DN15
|
DN20
|
DN25
|
|
Popular name
|
1/4"
|
--
|
3/8"
|
1/2"
|
3/4"
|
1"
|
Main engine weight:
Weight
（KG）
|
X3-Φ9.53
|
X3-Φ12.7
|
X3-Φ15
|
X3-Φ20
|
X3-Φ25
|
X3-Φ32
|
|
0.91
|
0.90
|
0.90
|
0.84
|
0.84
|
0.82
|
|
Measurement of support hose (PFA/PU)
SUNCENT-X3 anti-corrosion split type can support PFA/PU hose, stainless steel pipe, carbon steel pipe, copper pipe and plastic pipe (PVC, PVDF, PPR, PPH, HDPE, etc.).

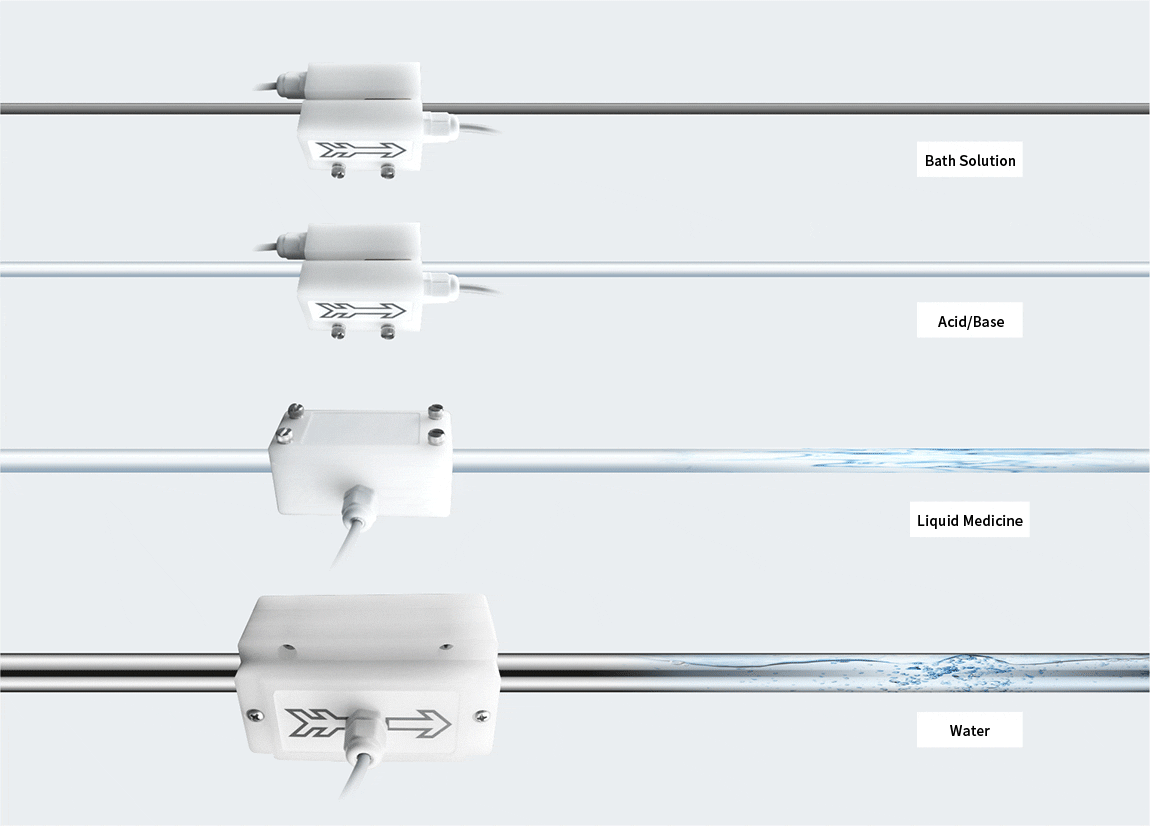

Among them, PFA/PU hose is difficult to measure data by other traditional flowmeters, so SUNCENT-X3 anti-corrosion split type can measure the corrosion of acid, alkali, salt solution and various organic solvents, and can be applied to flow measurement in the production process of semiconductor manufacturing, medical equipment, transmission pipeline, chemical container, etc.

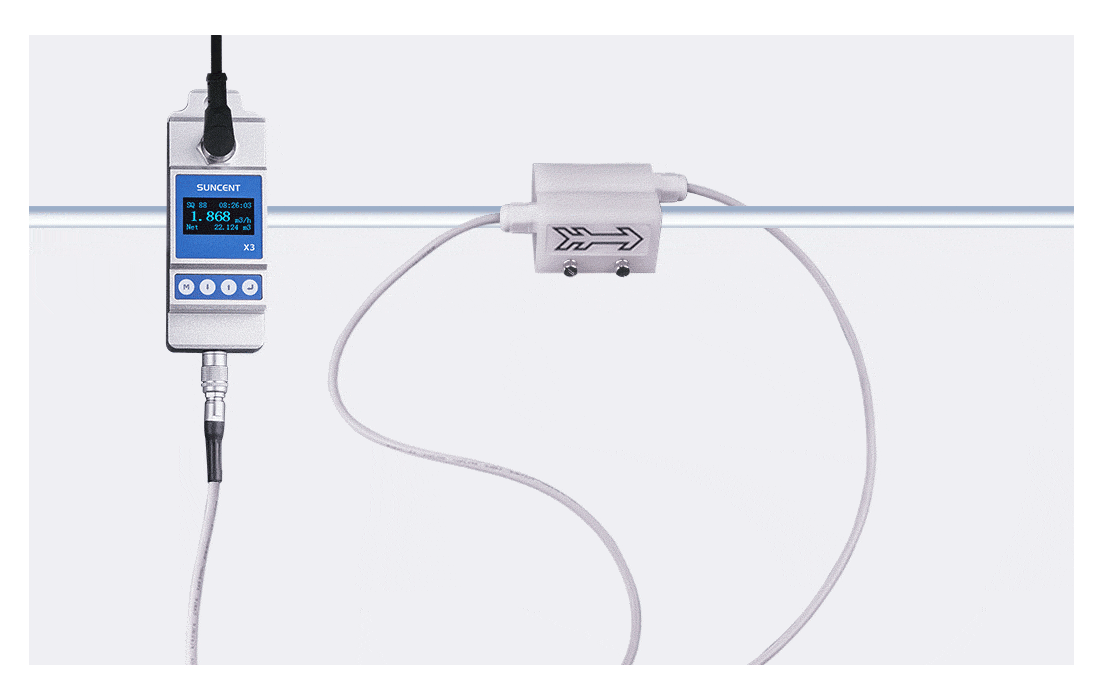

Because it is detected from the outside of the pipeline, it can be safely used for liquid flow management that needs to avoid contact with liquid without worrying about drug resistance. Therefore, it can be applied to the flow measurement of food and medicine.
|
Installation specifications and dimensions:
Product display:
Detailed product specifications:
|
Product name
|
SUNCENT-X3 special ultrasonic flowmeter for semiconductor corrosivity
|
|
Product model
|
X3
|
|
Flow range
|
0.1m/s~5.0m/s
|
|
Accuracy
|
±1.0%
|
|
Repeatability
|
0.8%
|
|
Pipe size
|
Φ9.53/Φ12.7/Φ15/Φ20/Φ25/Φ32
|
|
Data storage
|
Daily, monthly, and Annual. Flow Totalizer
|
|
Analog output
|
4-20mA, Maximum load: 600Ω
|
|
Alarm output
|
OCT, Upper and lower limit alarm function (optional)
|
|
Communication
|
RS485, Modbus and BACnet(optional)
|
|
Power supply
|
24V DC
|
|
Cable length
|
1.8m
|
|
Keypad
|
Four light touch buttons
|
|
Display
|
OLEO 128*64 display screen
|
|
Units
|
Metric and imperial units are available, Cubic Meters(m³),
Liters(L),USA Gallons(GAL)/hour, /min, Default unit setting: m³/h
|
|
Totalizer
|
Six bit digit
|
|
Piper material
|
PFA/PU, Stainless steel pipe, carbon steel pipe, copper pipe, plastic pipe
|
|
Case material
|
Aluminum alloy
|
|
Environment temp.
|
0℃~50℃
|
|
Medium temp.
|
0℃~50℃
|
|
Humidity
|
0-95% relative humidity, without condensation
|
|
IP Grade
|
IP65
|
